Flares

PROVEN LIKE NO OTHER.

We engineer the world’s most advanced flaring systems. Decades of research and development are incorporated into every flare design to provide unsurpassed reliability, safety, efficiency and cost effectiveness. That’s smart. That’s JZHC.

Flare Solutions

LRGO™ Multi-Point Ground Flares

LRGO™ Multi-Point Ground Flares

Home  |  Products & Applications  |  Flares  |  LRGO™ Mutli-Point Ground Flares

LRGO™ Multi-Point Ground Flares

Low radiation. Maximum smokeless performance. Low emissions.

Our LRGO™ flare system is a multi-point ground flare (MPGF) designed to optimize flare operations and enhance performance in various industries. With decades of experience and a commitment to innovation, our state-of-the-art design capabilities and unique burner designs ensure safe and efficient flare operation, high smokeless capacity, and significant emissions reduction. Whether you are in olefins and polyolefins, aromatics, LNG production, oil and gas production, refineries, or pipeline operations, our LRGO flare system offers exceptional performance and reliability.


Home  |  Products & Applications  |  Flares  |  LRGO™ Mutli-Point Ground Flares

LRGO™ Multi-Point Ground Flares

Low radiation. Maximum smokeless performance. Low emissions

Our LRGO™ flare system is a multi-point ground flare (MPGF) designed to optimize flare operations and enhance performance in various industries. With decades of experience and a commitment to innovation, our state-of-the-art design capabilities and unique burner designs ensure safe and efficient flare operation, high smokeless capacity, and significant emissions reduction. Whether you are in olefins and polyolefins, aromatics, LNG production, oil and gas production, refineries, or pipeline operations, our LRGO flare system offers exceptional performance and reliability.


Performance Features

Our LRGO flare system ensures safe and efficient flare operation with minimal visual impact and no ground level radiation. Experience 100% smokeless operation with high capacity and minimal utility costs. Benefit from significant emissions reduction and a reduction in smoke control complexity.


  • Safe and efficient flare operation with minimal visual impact and ground-level radiation
    Properly designed fence height to ensure hidden flames
  • Provides 100% smokeless operation for large vent gas reliefs
  • High smokeless capacity with zero to minimal assist media
  • Significant reduction in hydrocarbon emissions versus elevated flares (75% hydrocarbon emission reduction is typical)
  • Can eliminate risk of over assisting which can produce high emissions

https://www.youtube.com/watch?v=wxSrtAtyQ6w&t=18s

Multi-Point Ground Flares

Design Features

Our state-of-the-art design capabilities are backed by actual field verification gained through decades of experience designing some of the largest MPGF systems in the world. We have also invested significant resources to build test apparatus to allow characterization of LRGO array performance.  We have provided LRGO flare systems in numerous applications, including olefins and polyolefins, aromatics, LNG production, oil and gas production, refineries, pipeline operations, and more:


  • Hidden Flame
  • Short flame length burner design that provides reliable cross-light capability
  • High smokeless capacity
  • Little or no assist medium (steam or air) for smoke control
  • High hydrocarbon destruction efficiency (≥99.5% DRE)
  • Limited or no steam / air controls required to maintain high DRE

Flare Burner Design

The LRGO flare system features a unique range of burner designs that provide optimum flame stability, high hydrocarbon destruction efficiency (normally > 99.5% DRE) and many additional benefits. The LRGO-HC burner design is ideal for demanding applications when short flame length with reliable cross-lighting is required. Compared to conventional burners, the LRGO-HC burner allows for:

  • Shorter flame lengths
    – Reliable cross-lighting at greater burner spacing
    – Better cross-lighting of low heating-value gases
  • Improved smokeless performance and turndown
    – Efficient air entrainment
    – Better mixing
  • Shorter radiation fence
    – Reduced installation and maintenance costs
    – Less expensive foundation design

First-Stage Burners


The first stage of most MPGF systems requires a burner design that can produce smokeless flaring at turndown from purge rate to maximum rate. This typically requires utilizing steam-assisted or air-assisted burners on the first stage, which adds complexity to the design and controls. It also requires continuous utility usage (steam or blower power). This increases the likelihood of over-steaming or over-aerating the burners which can produce decreased hydrocarbon destruction efficiency.




The JZ Indair first-stage burner design utilizes a variable-slot mechanism to produce 100% smokeless flaring from purge through maximum flow rate without the use of any outside utilities. This provides a low-maintenance, simple operation design that is guaranteed to produce high DRE without operator involvement.

Related Products, Solutions & Services

Markets and Applications

  • Olefins and Polyolefins

  • Aromatics

  • LNG Production

  • Oil and Gas Production

  • Refineries

  • Pipeline Operators

Elevate Your Flare System Performance with LRGO

Upgrade your flare system with LRGO and benefit from safe and efficient flare operation, high smokeless capacity, and significant emissions reduction. Our state-of-the-art design capabilities and unique burner designs ensure optimal performance. Contact us now to learn more.

X







* Required field

Contact Us To Learn More.

Steamizer® XP™

Steamizer® XP™

Home  |  Products & Applications  |  Flares  |  Steamizer® XP™

Steamizer® XP™

Safe, Economical and Smokeless

Explore our cutting-edge Steamizer® XP™ flare, where exceptional performance meets innovative design. This steam-assisted flare offers a range of performance features, including minimized environmental impact, reduced steam consumption, simple operation, and significantly lower operating costs. Additionally, our design features a long service life, ultra-high smokeless capacity, low noise operation, eliminates the need for center steam, and eliminates the potential for steam capping that can occur in older designs. With the Steamizer XP, you can expect superior performance and efficiency in smokeless flaring.


Home  |  Products & Applications  |  Flares  |  Steamizer® XP™

Steamizer® XP™

Safe, Economical and Smokeless

Explore our cutting-edge Steamizer® XP™ flare, where exceptional performance meets innovative design. This steam-assisted flare offers a range of performance features, including minimized environmental impact, reduced steam consumption, simple operation, and significantly lower operating costs. Additionally, our design features a long service life, ultra-high smokeless capacity, low noise operation, eliminates the need for center steam, and eliminates the potential for steam capping that can occur in older designs. With the Steamizer XP, you can expect superior performance and efficiency in smokeless flaring.


Performance Features

Our state-of-the-art Steamizer XP offers impressive performance features, including minimized environmental impact, reduced steam consumption, simple operation, and significantly lower operating costs.

  • Savings: The XP utilizes 30% to 40% less steam for smoke suppression than traditional technologies, resulting in significantly reduced operating and capital costs.
  • Increased Smokeless Capacity: Innovative primary steam/air eduction and secondary air entrainment techniques result in an increased smokeless capacity of 40% to 60% for a given steam flow rate.
  • Increased Tip Life: Damage due to thermal cycling is significantly reduced as a result of the XP’s unique design resulting in a long service life. The steam injection components are well protected from radiation and flame impingement compared to older flare designs.

Steam-Assisted Flares

Design Features

The XP flare design offers an ultra-high smokeless capacity, low noise operation, and eliminates the need for center steam and steam capping. With its efficient and simplified operation, the XP flare is the ideal choice for superior performance in smokeless flaring.

  • Shear Mixing: A converging nozzle directs the vent gas stream to intersect the steam/air stream at a slight angle. The patented design improves mixing resulting in exceptional smokeless performance. It is particularly efficient for olefins due to the exceptional mixing characteristics of the tip.
  • Steam/Air (S/A) Tube Efficiency: The XP flare is designed with straight S/A tubes instead of bent S/A tubes found in older designs. This innovation results in optimized air eduction efficiency that contributes to superior smokeless performance and reduced steam consumption.
  • Staged Steam Injection: The XP can be configured to use multiple discharge nozzles that allows for efficient operation at low vent gas flow rates. This feature greatly reduces the amount of steam needed during low flow conditions and can reduce or eliminate the need for supplement gas.

Related Products, Solutions & Services

Markets and Applications

  • Chemical Plants
  • Gas Pipelines and Distribution
  • LNG Facilities
  •
Offshore/onshore Oil and Gas Production
  •
Petrochemical Plants
  •
Refineries
  •
Upstream Operations

Experience the Next Generation of Smokeless Flaring

Improve your environmental footprint while enjoying the benefits of reduced steam consumption. With its advanced design features, exceptional performance, and long service life, the Steamizer XP is the ultimate solution for smokeless flaring. Contact us today to learn more and elevate your flaring operations to the next level.


X







* Required field

Contact Us To Learn More.

Enclosed Ground Flares

Enclosed Ground Flares

Zero Smoke, Low Noise And No Visible Flame.

Our enclosed ground flare systems combust waste gases cleanly and efficiently by eliminating smoke and minimizing noise and visible flame from conventional flaring. Enclosed flares are customized to client specifications to achieve excellence in overall system performance using unique technologies such as JZHC fin plate burners and our proprietary fluidic wind fence design.

Literature Link Button

Contact Us To Learn More.

Demountable Flare Structures

Demountable Flare Structures

Maximum Flexibility, Minimum Downtime.

John Zink Hamworthy Combustion demountable flare structures offer incredible flexibility and efficiency. Our risers are designed to allow the flare to be lowered to grade for ease of service and inspection. This design concept offers enhanced flare maintenance and flexibility while minimizing the impact to plant operations.

Literature Link ButtonLiterature Link Button

Contact Us To Learn More.

Pressure-Assisted Flares

Pressure-Assisted Flares

High Performance, Low Radiation, And Long Tip Life.

Our pressure-assisted flare systems safely deliver the highest smokeless capacities and lowest radiation of any pressure-assisted flare design. The Kaldair® Indair, JZ Hydra, Kaldair Multipoint Indair (KMI) and JZ Poseidon flare systems provide low radiation, quiet operation and unlimited turndown—making them the production industry’s most economical pressure-assisted flare choices. These proven designs produce short, smokeless flames with no assist medium, allowing use of shorter boom lengths and simpler mounting structures.

Contact Us To Learn More.

Air-Assisted Flares

Air-Assisted Flares

Cost-Effective, Smokeless Flaring.

Plants that require smokeless flares where steam is not preferred use our state-of-the-art, air-assisted flare systems for cost-effective, smokeless flaring.

Our long-lasting flares use a range of innovative techniques to optimize air-to-gas mixing and eliminate steam-energy costs. These innovative designs are used to optimize flaring performance from small, simple applications to large, complex designs and everything in between. Air-assisted flares can be used as a first-stage flare in multi-flare arrays designed to meet high capacity needs.

Our air-assisted flare solutions include:

  • JZ LHLB™
  • AZDAIR™
  • SMART™ (Refining and Petrochemical only)
  • JZ LH™
  • LHTS™, LS™ (Production only)
Literature Link Button

Contact Us To Learn More.

Liquid Flares

Liquid Flares

Portable Design, Flexible Operation, Easy To Deploy.

We pioneered the logical alternative to remote oil disposal with the Kaldair Condair™ liquid flare systems. Liquid flares eliminate the logistical headaches of shipping, trucking and storage, especially in hard-to-access locations on land, water and in arctic environments. We also developed our liquid flares with the clean-flaring advantages our customers expect, including minimum smoke, low radiation and low noise, and unique features for handling a wide variety of viscous fluids at high rates. Designs frequently include multiple flares on booms and use a water screen to minimize radiation during high flare rates.

Contact Us To Learn More.

Applications

  • Chemical plants
  • Gas pipelines and distribution
  • LNG facilities
  • Offshore/onshore oil and gas production
  • Petrochemical plants
  • Refineries
  • Upstream operations

Flare Pilots, Igniters & Monitoring Systems.

We know a single flare failure can bring a sudden, expensive halt to your operations. And costs can add up quickly: unexpected repairs, unforeseen expenditures, environmental fines and lost production. That’s why we not only pioneered the world’s most advanced flaring systems, we engineered a wide range of energy-efficient flare pilots, ignition systems and pilot monitors specifically designed to keep your flare systems operating at peak performance.

Ensuring Reliable Flare Performance.

Energy-Efficient Pilots: We’ve leveraged our flare experience to engineer reliable pilots capable of withstanding the most extreme winds and rain, while eliminating re-ignition delays.

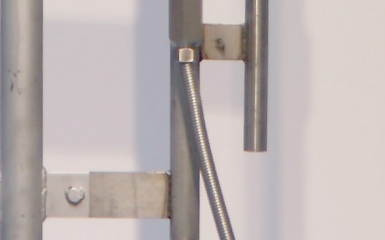

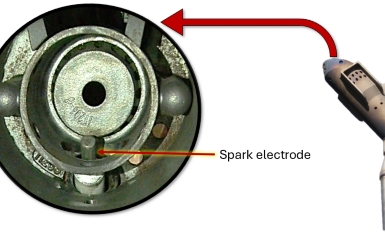

Reliable Ignition: Superior flare performance starts with reliable ignition. That’s why thousands of installations worldwide depend on the consistent performance of our igniters.

Continuous Monitoring Systems: Our pilot monitors deliver superior performance and peace of mind, so you know your pilot is safely lit in remote and hard-to-access locations during the most intense wind, rain and snow.

Other Accessories: We offer a complete range of control systems to keep flares operating at maximum performance with long life and even longer maintenance intervals. Retractable thermocouples, steam controls, blower controls for air-assisted systems and explosion-prevention systems are available for virtually every application to suit your specific monitoring and troubleshooting needs.

Contact Us To Learn More.

Flare Inspections.

Flare tip damage isn’t always visible from the ground. That’s why JZHC offers inspections of in-service flares using Unmanned Aerial Vehicles (drones). Annual inspections can save you money in the long run.

Literature Link Button

Training Classes.

Through the John Zink Institute℠, we actively share the experience and expertise we’ve gained from years as an acknowledged industry leader. Thousands have taken advantage of our accredited, practical courses.

Testing & CFD Analysis.

JZHC tests each major flare model, and can provide customer demonstrations, on the flare pad at our world-class R&D test center. Such thorough testing helps ensure safe, efficient and practical flare operation. In addition, our engineers perform extensive CFD analysis and modeling to provide a prediction of flow, mixing, and combustion in flare flames. Our engineers also utilize CFD to assess flare performance and environmental impact at customer sites.
